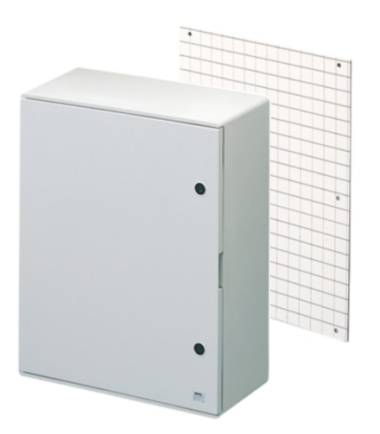

Gewiss Polyester Distribution Board Blank Door Fitted With Lock & Mounting Plate 515x650x250mm IP66

Out Of Stock

Description

GW46005GT – Watertight Polyester Distribution Board with Lockable Hinged Door and Insulated Back Mount Plate IP65

– Brand: Gewiss
– External dimensions: 515 x 650 x 250mm (LxHxD)
– No. of modules (DIN): 96 (4 rows of 24)
– Impact resistant
– Halogen free
– Supplied with back mount plate made out of insulated material
– Fitted with pre-assembled inserts to speed up the configuration of the board
– The door can be hinged to open to either the left or the right and is equipped with a functional reference grid for fixing devices to it
– Windowed or blank panels can be mounted directly into the side walls of the enclosure
– Supplied with screwcaps for double insulation and four reversible squares, with the relative bolts and screws, for fixing the back-mounting plates (included) or uprights for modular equipment (not included)
– No. of locks: 2
– Dispersible power: 126W (calculated according to CEI 23-49)
– IP65

Specifications

Gewiss 46 range of distribution boards technical info.pdf
Gewiss 46 range technical info.pdf
Gewiss 46 range distribution board overview.pdf
Parts available for Gewiss 46 range distribution boards.pdf
