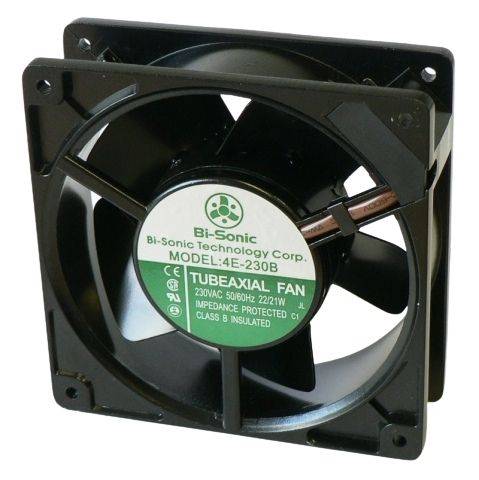

Axial Fan Slow Speed 119x119x38mm 240V AC

SKU: 4E-230B-17 Categories: ,
ENQUIRE

Description

4E-230B-17 – Slower Speed 119mm x 119mm x 38mm 230v AC Ball Bearing Fan

– Brand: Bi-Sonic
– Construction: die-cast aluminium housing, metal impeller, shaded pole motor
– Impedance protected
– Complete with two terminals for wire connection.
– Power cord available which fits directly to these terminals (product code: 9T-4E-1M)
– Operating temperature: -30°C to +75°C
– Dimensions: 119mm x 119mm x 38mm
– Rated voltage: 230v
– Frequency: 50/60Hz
– Input power: 19/18w
– Max. rated current: 120/110mA
– Speed: 1600-1700 RPM
– Max. air flow: 52-58 cubic feet per minute
– Noise: 27-32 dB
– Weight: 600gm

Specifications

Tube axial fan info.pdf
