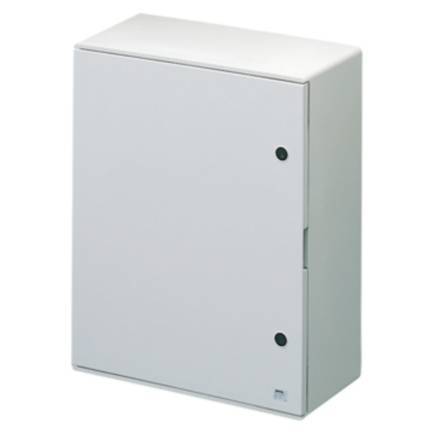

Gewiss Frp Distr Board Blank Door 800x1060x350mm IP65

SKU: GW46007 Categories: , ,


GW46007 – Watertight Polyester Distribution Board with Lockable Hinged Door IP65

– Brand: Gewiss
– External dimensions: 800 x 1060 x 350mm (LxHxD)
– No. of modules (DIN): 180 (5 rows of 36)
– Impact resistant
– Halogen free
– Fitted with pre-assembled inserts to speed up the configuration of the board
– The door can be hinged to open to either the left or the right and is equipped with a functional reference grid for fixing devices to it
– Supplied with screwcaps for double insulation and four reversible squares, with the relative bolts and screws, for fixing the back-mounting plates (not included) or uprights for modular equipment (not included)
– No. of locks: 2
– Dispersible power: 337W (calculated according to CEI 23-49)
– IP65


Gewiss 46 range of distribution boards technical info.pdf
Gewiss 46 range technical info.pdf
Gewiss 46 range distribution board overview.pdf
Parts available for Gewiss 46 range distribution boards.pdf
